AGSS Plant

QING JIE customized dental exhaust gas recovery unit . China quality brand supplier weclearmed company specializing in the production of medical AGSS exhaust gas unit, supply new advanced anesthesia gas recovery unit with excellent design. It is safe, intelligent and can be remote control networking network with human-machine interface. Welcome to consult to get a free quote program!

Send Inquiry

Product Description

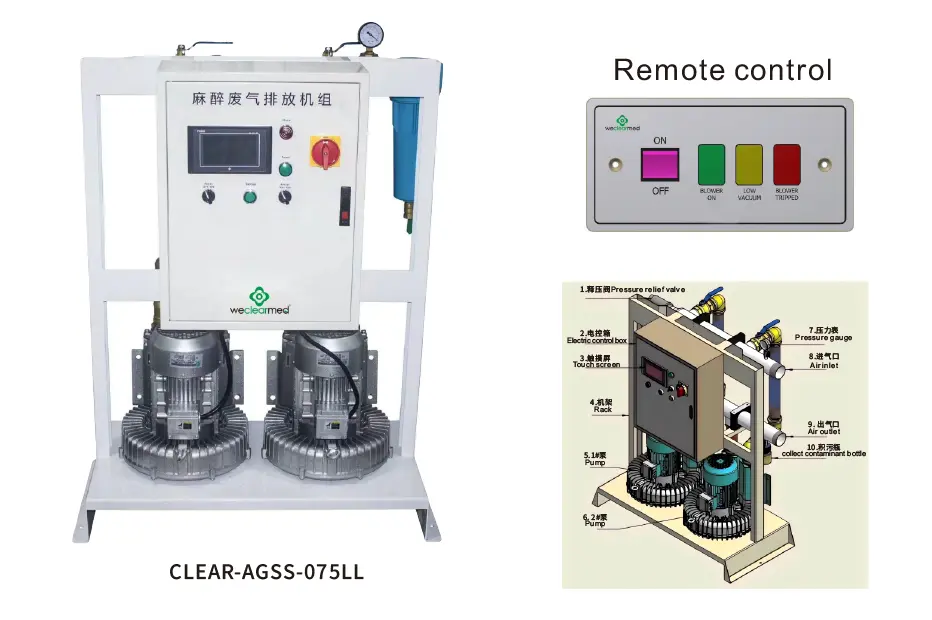

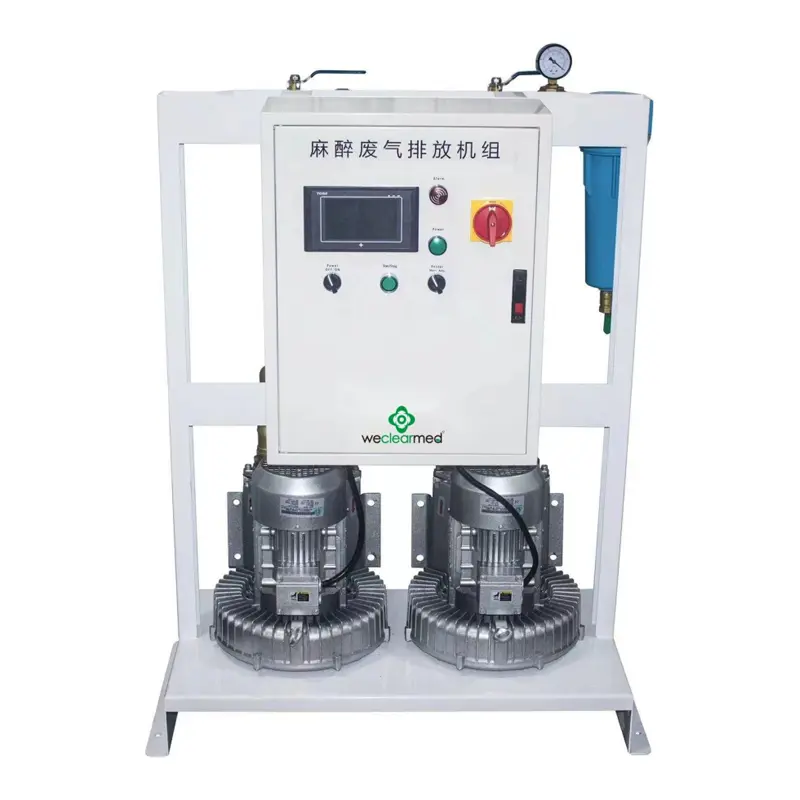

Anaesthetic Gas Scavenging System AGSS Plant

1.Visual tank for exhaust gases, oil-water separator, flush system for exhaust removal

2.Skid-mounted storing and distributing for integrated functions, easy to install

3.Duplex system can make the AGSS plant work continuously even if one of the pump goes wrong

4.Flow regulator to guarantee that the pressure is between -180 mpa and 200 mpa

5.Remote control

6.Schneider Electric PLC (Programmable Logic Controller), touch screen for displaying, controlling and debugging

7.Automatic operation, glitches recognition and timely alarm realized by protective pressure sensors

8.All of information put together is shown right on the summary screen, including the alarm log, maintenance schedules, runtime, database, electric currents, run charts etc

Remote Control Product Features.

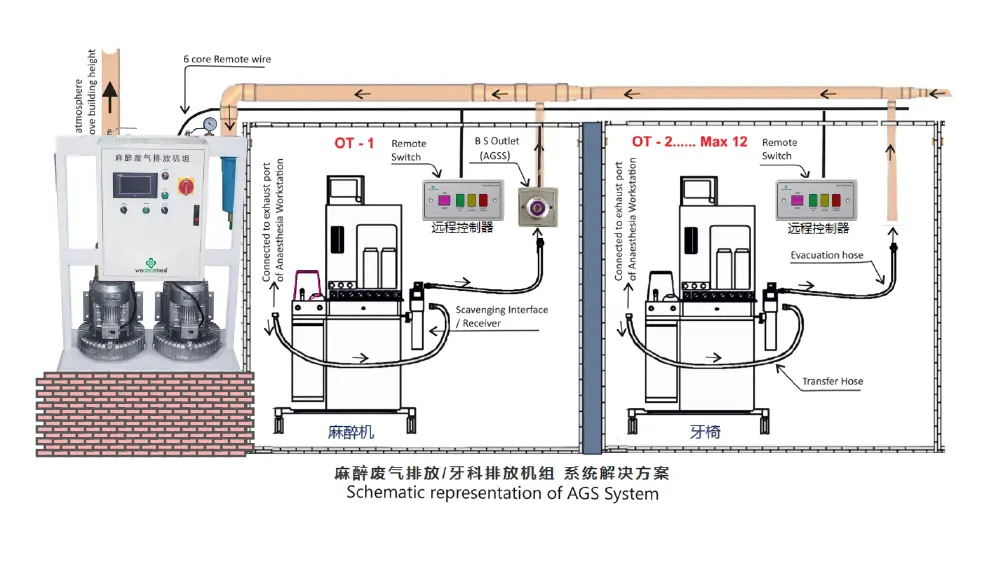

1. Cooperate with the emission unit to realize independent monitoring of each room

2. Remote start-stop, operation status, pressure status, fault alarms

3. Compact appearance, easy installation and maintenance

System specification and description(at 50HZ)
Model		AGSs.751l	AGSS.5Il	AGSS.2ll	AGSS.OIl	AGSS.Oll	Single-level	3 level
Single-pump flow rate m 3/h		72	160	270	318	360	Refer to double evel	Reter to double eve
System flow rate		144	320	540	636	720
Single-machine power(kw)		0.75	1.5	2.2	3.0	4.0
System power(kw)		.7	3.2	4.7	6.2	8.2
Motor speed(rmp)		2850	2850	2850	2850	2850
Dental blowdown pump(kw)		0.75	0.75	1.1	1.1	1.1
Dental collecting pollution tank		20	20	40	40	40
Weight(kg)		130	150	170	200	230
Noise(dbA)		62	62	65	65	72	65	72
Overall dimension(mm)		050	1050	1050	1050	1200	550	1420
	W(dentistry)	950	950	950	950	950	950	950
	W(anesthesia)	550	550	550	550	750	550	750
	H	1200	1200	1200	1200	1200	1200	1200
