Gas Cylinder Quads

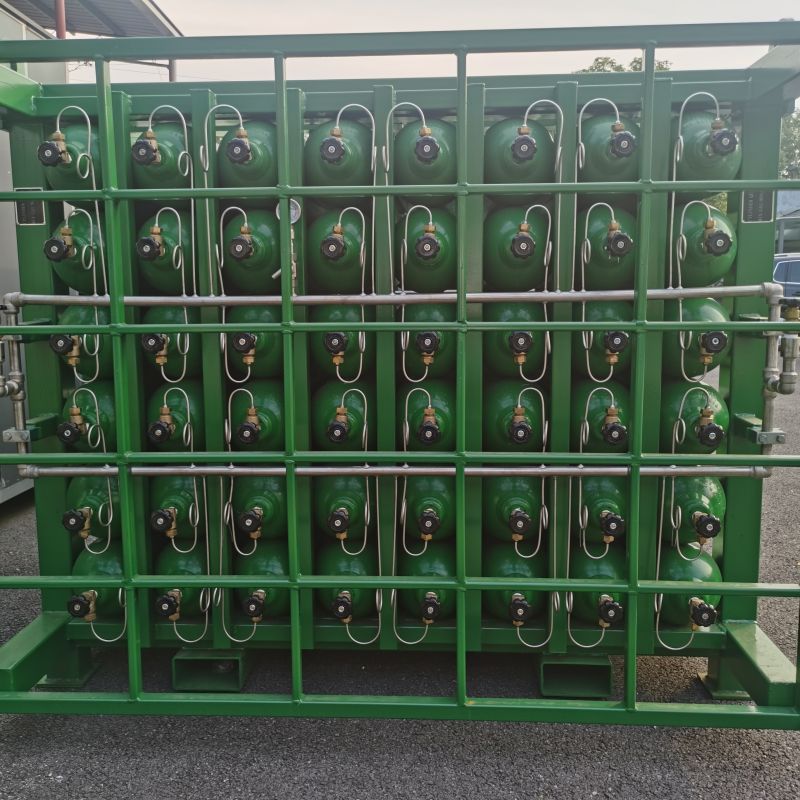

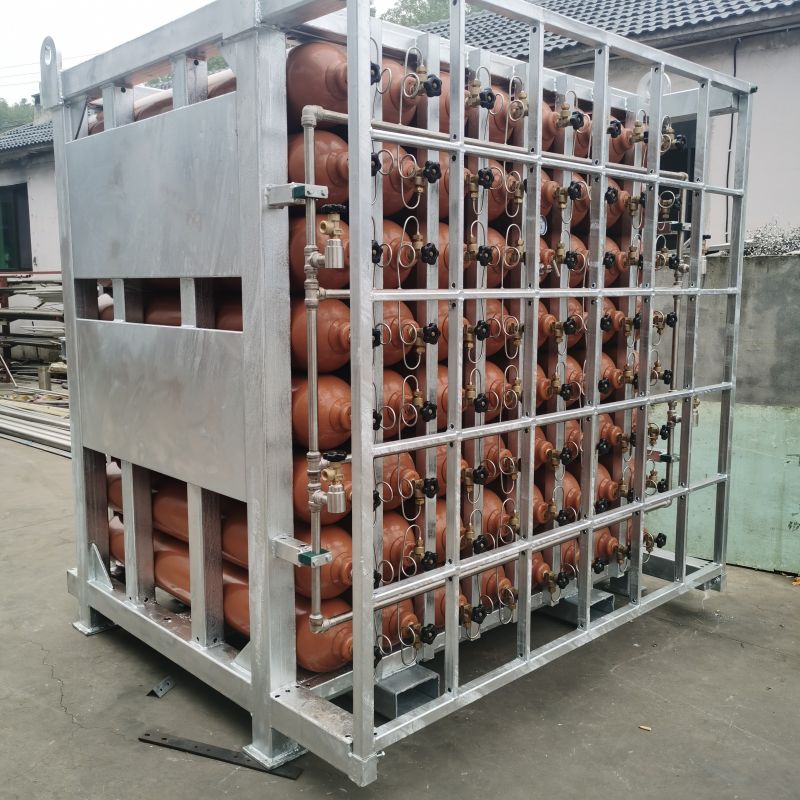

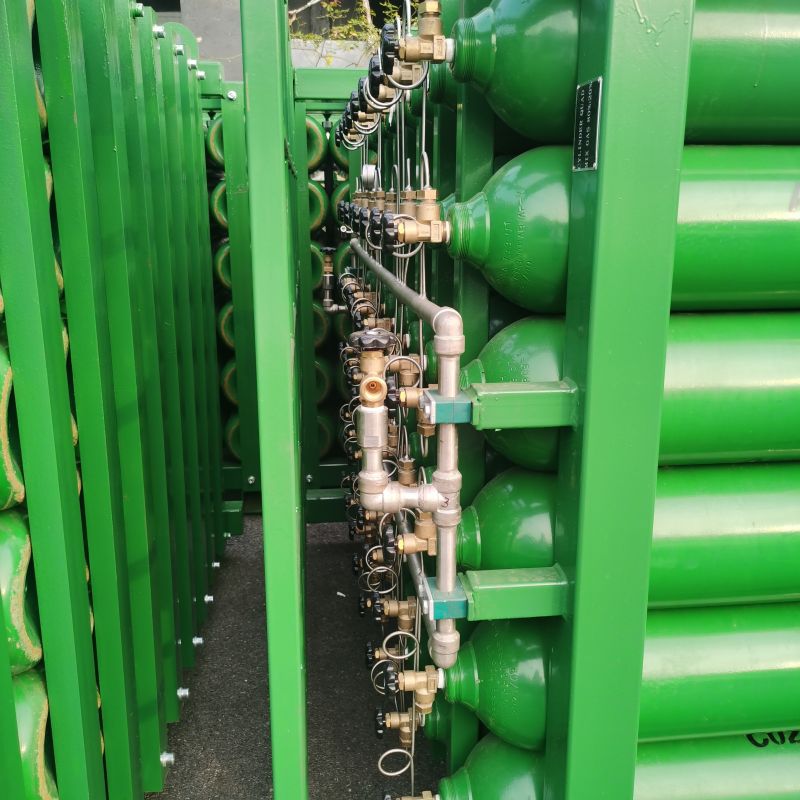

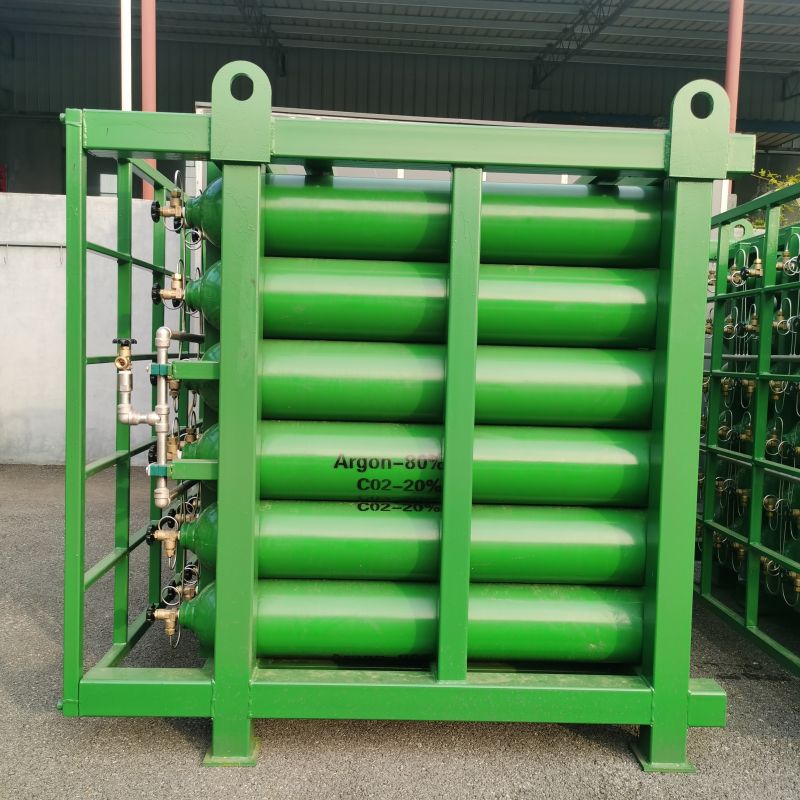

Design Principle: First design a steel frame that can assemble several bottle, which is convenient for overall filling, overall transportation and movement. Then fill the gas cylinders in and fix them, and finally connect each bottle valve through the high-pressure banks.All the cylinders outlets are interconnected to one another that they can be used as a whole simultaneously.

Parameters of the gas cylinder quads: It consists of more one cylinders with a pressure of 120-220 bar.Flow rate can be designed to 100m³/h or bigger. At present we can do is more than 2000 cubic meters per hour.High-pressure banks can be made of brass, red copper, stainless steel 361 or 304.The cylinder quads to be used for various gases like Oxygen,Argon,Carbon di oxide and Helium etc.The common models of quads are 16 cylinders quad,32 cylinders quad,48 cylinders quad and 64 cylinders quad.We can do customize built as per specific needs and requirements.

Filling medium:air, O₂,H₂, N , Ar , He , Ne , Kr , CH4 , NO , CO , CO2 , SF6 , CHF3 , C2F6 , Xe , C2H6 , C2H4 , C2H2F2 , SiH4 , HCI , N2O , PH3 , BF3 , CF4 , NF3 , AR-M , Ar-M-F , N-M-F , N2-M , NH3 , CI2 , BCI3 , CF3Br , SO2
