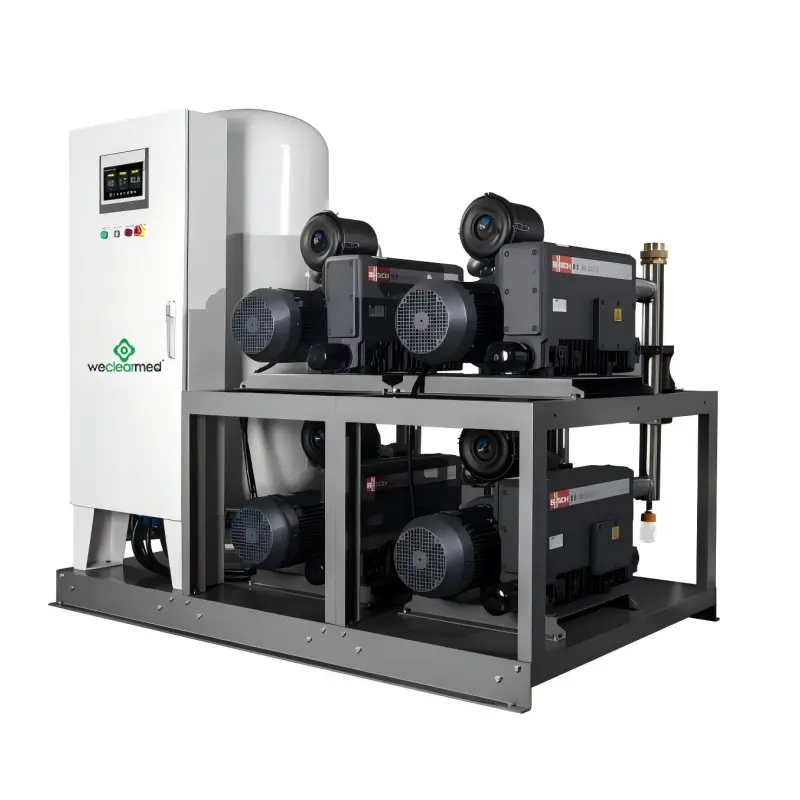

Lubricated Rotary Vane Medical Vacuum System
Weclearmed specializes in the production of medical negative pressure units, vacuum waste liquid recovery system with durable and good quality. Oil-free and oiled screw scroll unit, oiled screw pump unit with sterilization filter dust system and LCD screen interface have two years warranty and more than ten years design life!
Send Inquiry
Product Description
Product Detail
The oil-lubricated vacuum pump is a durable long-life pump that has been used for many years in hospital and laboratory applications. The use of oil facilitates higher efficiency of the pump, lower operating temperatures, and lower sound levels. Oil-sealed rotary vane pumps are ideal for most hospital applications.
The medical vacuum plant uses the Schneider brand LCD control panel which is easy to maintain. The medical vacuum pump is available in Simplex, Duplex, Triplex, or Quad, and different capacity receiver tanks are available, meeting different client requirements.
Medical vacuum negative pressure unit (oil-wetted rotary vane series)
| Number |
Equipment pumping speed |
Model number |
Unit power |
Unit numbers |
System power |
Touch screen |
Vacuum tank |
External Dimension | Remarks |
| (m3/h) | (kW) | (kW) | (inch) | (L) |
(Length*width*height) mm |
||||
| 1 | 100 | VC-YR-2.7D | 2.7 |
2(1 Used and 1 standby) |
5.4 | 7 | 300 |
1700*1400*2000 1700*1400*2200 1700*1500*2200 2400*1400*2000 2400*1400*2200 2400*1500*2200 2400*1400*2000 2400*1400*2200 2400*1500*2200 3100*1400*2000 3100*1400*2200 3100*1500*2200 3100*1400*2000 3100*1400*2200 |
1. The device runs at an ambient temperature of 0-40 ° C. Note the requirements for special ambient temperature. 2. The pumping speed of the equipment does not include a spare vacuum pump, and is measured under the suction vacuum pressure of the system at 60kPa and converted to the value of atmospheric pressure. |
| 2 | 200 | VC-YR-5.5D | 5.5 |
2(1 Used and 1 standby) |
11 | 7 | 500 | ||
| 3 | 300 | VC-YR-7.5D | 7.5 |
2(1 Used and 1 standby) |
15 | 7 | 500 | ||
| 4 | 200 | VC-YR-2.7T | 2.7 |
3(2 Used and 1 standby) |
8.1 | 7 | 300 | ||
| 5 | 400 | VC-YR-5.5T | 5.5 |
3(2 Used and 1 standby) |
16.5 | 7 | 500 | ||
| 6 | 600 | VC-YR-7.5T | 7.5 |
3(2 Used and 1 standby) |
22.5 | 7 | 500 | ||
| 7 | 300 | VC-YR-2.7Q | 2.7 |
4(3 Used and 1 standby) |
11 | 7 | 300 | ||
| 8 | 600 | VC-YR-5.5Q | 5.5 |
4(3 Used and 1 standby) |
22 | 7 | 500 | ||
| 9 | 900 | VC-YR-7.5Q | 7.5 |
4(3 Used and 1 standby) |
30 | 7 | 500 | ||
| 10 | 400 | VC-YR-2.7P | 2.7 |
5(4 Used and 1 standby) |
13.5 | 7 | 300 | ||
| 11 | 800 | VC-YR-5.5P | 5.5 |
5(4 Used and 1 standby) |
27.5 | 7 | 500 | ||
| 12 | 1200 | VC-YR-7.5P | 7.5 |
5(4 Used and 1 standby) |
37.5 | 7 | 500 | ||
| 13 | 500 | VC-YR-2.7H | 2.7 |
6(5 Used and 1 standby) |
16.2 | 7 | 300 | ||
| 14 | 1000 | VC-YR-5.5H | 5.5 |
6(5 Used and 1 standby) |
33 | 7 | 500 | ||
| 15 | 1500 | VC-YR-7.5H | 7.5 |
6(5 Used and 1 standby) |
45 | 7 | 500 | 3100*1500*2200 |
