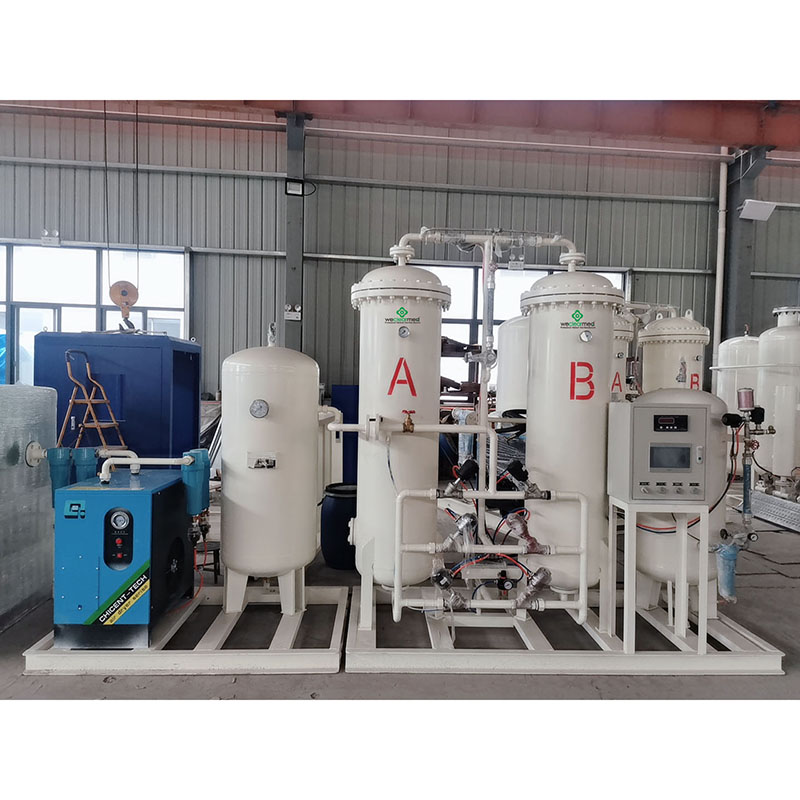

PSA medical oxygen generator Plant

We are a Chinese company for medical equipment.We have our own factory.We produce Weclearmed® PSA medical oxygen generator Plant.It uses Pressure Swing Adsorption(PSA) technology to separate the oxygen from the air.Our oxygen machine is effective,reliable and safe.The oxygen station could supply pure oxygen for all kinds of hospitals.We can customize oxygen generating machine to the customer site and installation conditions.

Send Inquiry

Product Description

How it works

The air first go into air compressor,then through refrigerated air dryer to be dried and purified.Then under the normal temperature low pressure,using the selectivity of zeolite molecular sieve for oxygen adsorption.PSA medical oxygen generator Plant gathers at the top of the adsorption tower and then enters oxygen storage tank.Dust,bacteria and peculiar smell are removed by different filters to achieve high quality oxygen.The purity is 93%±3%.

Specification:

Oxygen generators capacity: 3Nm³/h~100Nm³/h (single unit)

Oxygen purity: 93%±3% (PSA technology)

Power supply: 380V/220V

Out pressure: 3~0.55Mpa (adjustable)

Operation noise: ≦85 dB (A)

Automatic start/stop

Built in purity analyzer for continuous monitoring

Model	Oxygen Capacity		Air Compressor		Booster Compressor		Installation Area(㎡)
	Nm³/h	LPM	Feed air required	Power	Power	Capacity	Single line	Dual line
	Nm³/h	LPM	(m³/min)	(kw)	(kw)	(m³/h)	solution	solution
QJ-SPAO2-50	5	83	0.875	7.5	5.5	5	25	45
QJ-SPAO2-80	8	133	1.4	11	5.5	8	28	48
QJ-SPAO2-100	10	167	1.75	15	5.5	10	30	50
QJ-SPAO2-150	15	250	2.625	18.5	5.5	15	30	50
QJ-SPAO2-200	20	333	3.5	22	11	20	40	80
QJ-SPAO2-250	25	417	4.375	30	11	25	40	80
QJ-SPAO2-300	30	500	5.25	37	11	30	45	90
QJ-SPAO2-400	40	666	7	55	15	40	45	90
QJ-SPAO2-500	50	833	8.75	55	15	50	50	95
QJ-SPAO2-600	60	1000	10.5	75	15	60	60	110
QJ-SPAO2-800	80	1333	14	90	22	80	65	115
QJ-SPAO2-1000	100	1666	17.5	110	30	100	70	135
